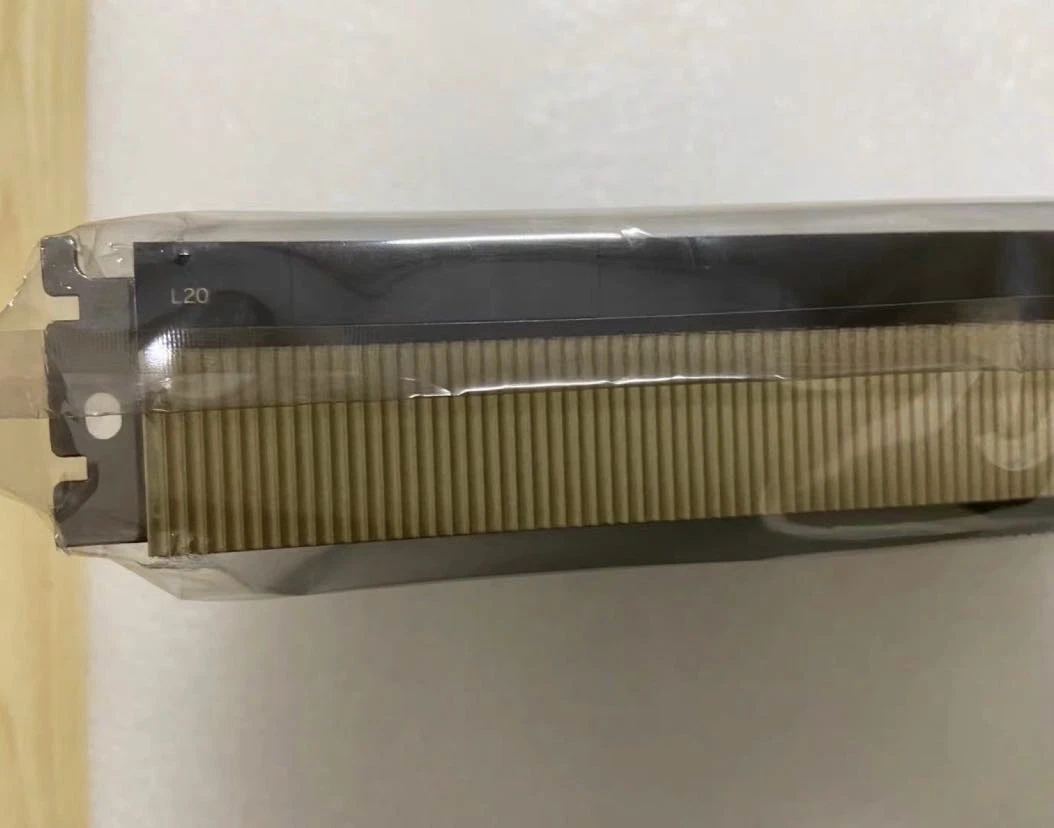

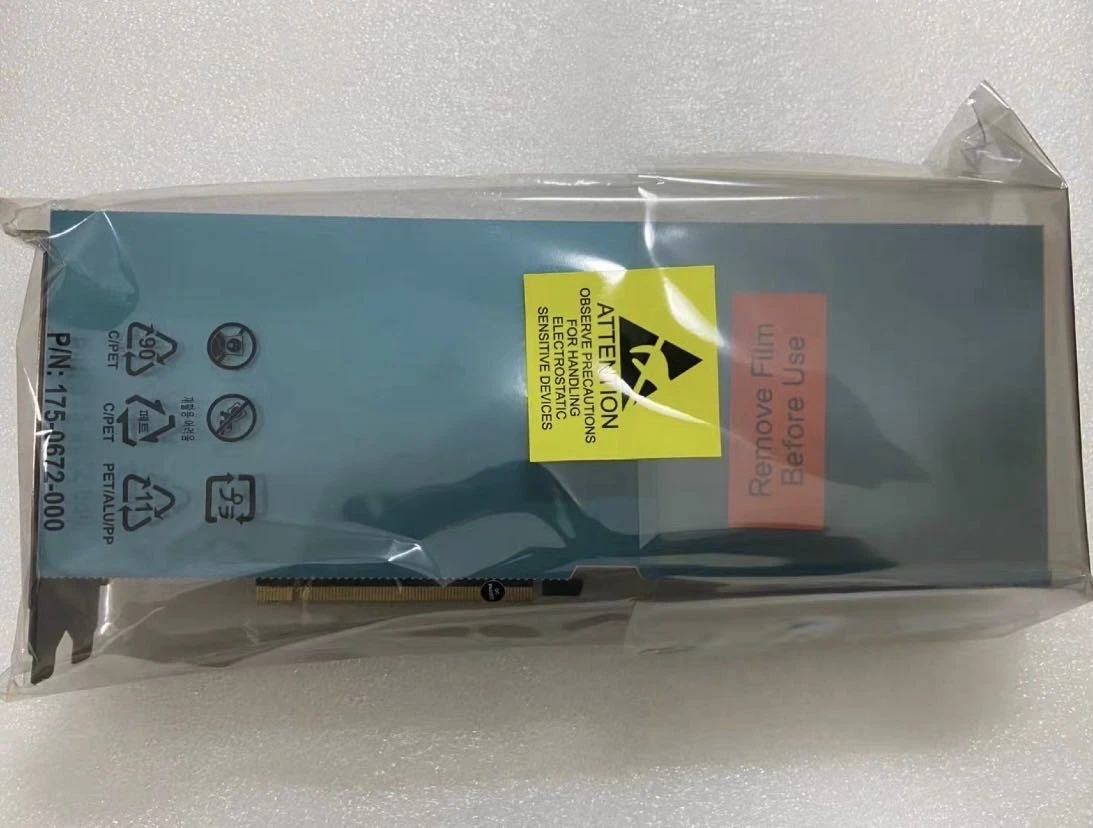

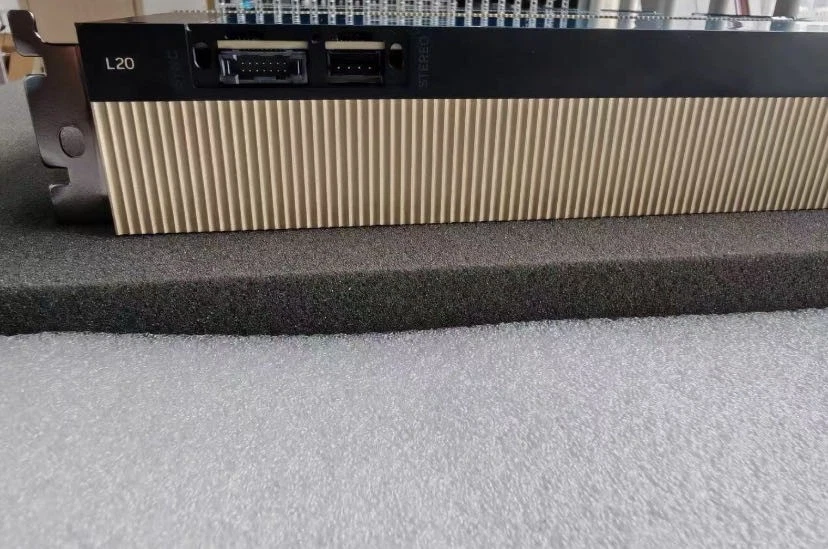

NVIDIA L20 48G

Item Specification
Product Name NVIDIA L20
GPU Architecture NVIDIA Ada Lovelace
CUDA Cores 10,752
RT Cores 84, 3rd Generation
Tensor Cores 336, 4th Generation
GPU Memory 48GB GDDR6 with ECC
Memory Interface 384-bit
Memory Bandwidth 864 GB/s
Interface PCI Express 4.0 x16
Display Connectors 4 × DisplayPort 1.4a
FP64 Performance 0.9 TFLOPS
FP32 Performance 59.7 TFLOPS
TF32 Tensor Performance 119.4 TFLOPS
FP16 Tensor Performance 238.9 TFLOPS
BF16 Tensor Performance 238.9 TFLOPS
FP8 Tensor Performance 478.4 TFLOPS
INT8 Performance 478.4 TOPS
Maximum Power Consumption 275W
Form Factor Full-Height, Full-Length, Dual-Slot
Cooling Passive Cooling
Card Length Approx. 267 mm
Card Height Approx. 112 mm
Power Connector 1 × 16-pin
ECC Supported
MIG Supported
Target Applications AI / Generative AI / Inference / LLM / 3D Rendering / Professional Visualization / HPC
Platform Data Center / Enterprise Server
