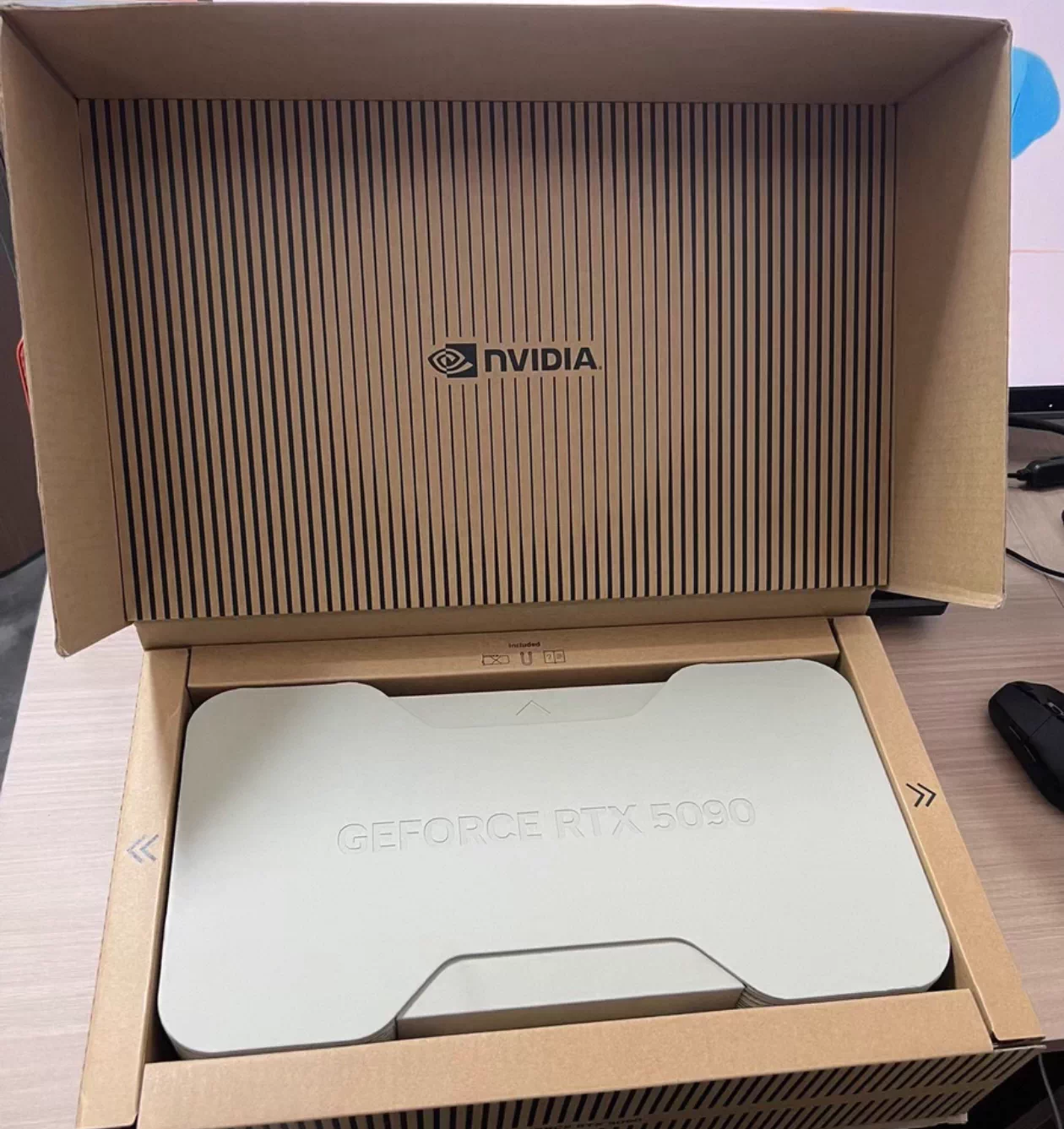

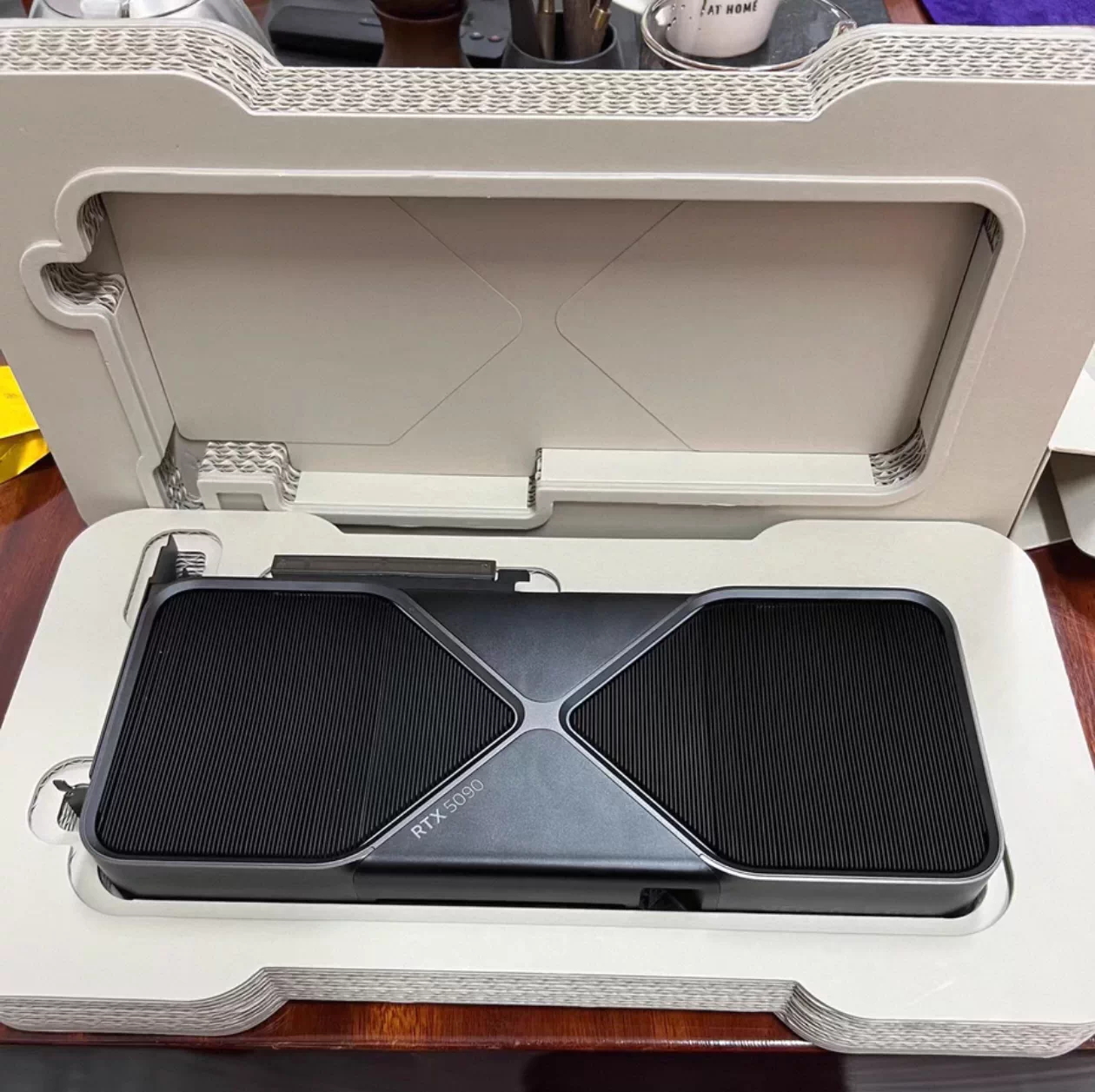

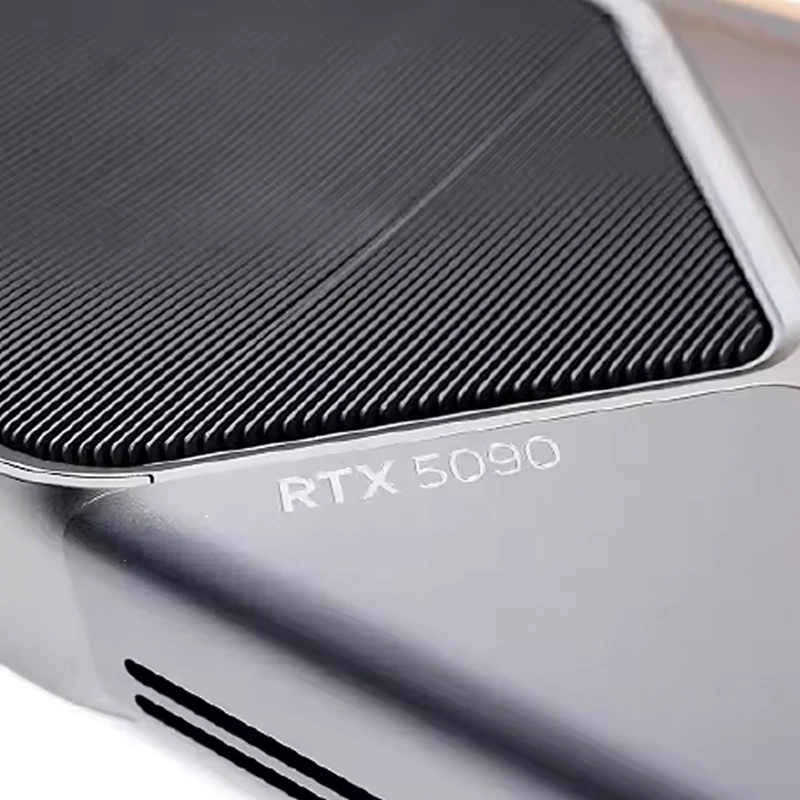

NVIDIA RTX 5090 Founders Edition
Product Name GeForce RTX 5090 Founders Edition
GPU Architecture NVIDIA Blackwell
CUDA Cores 21,760
Tensor Cores 5th Generation
Ray Tracing Cores 4th Generation
AI Performance 3,352 AI TOPS
RT Performance 318 TFLOPS
Base Clock 2.01 GHz
Boost Clock 2.41 GHz
Video Memory 32GB GDDR7
Memory Speed 28 Gbps
Memory Interface 512-bit
Memory Bandwidth 1,792 GB/s
Bus Interface PCI Express 5.0
DisplayPort 3 × DisplayPort 2.1b
HDMI 1 × HDMI 2.1b
Maximum Displays 4
Maximum Resolution 4K 480Hz / 8K 165Hz with DSC
HDCP 2.3
Total Graphics Power 575W
Required System Power 1000W
Power Connector 1 × 600W PCIe Gen 5 cable or adapter with PCIe 8-pin cables
Card Length 304 mm
Card Width 137 mm
Slot 2-Slot
SFF-Ready Yes
Maximum GPU Temperature 90°C
NVLink / SLI No
DirectX DirectX 12 Ultimate
OpenGL 4.6
CUDA Capability 12.0
NVENC 3 × 9th Generation
NVDEC 2 × 6th Generation
AV1 Encode / Decode Yes / Yes
