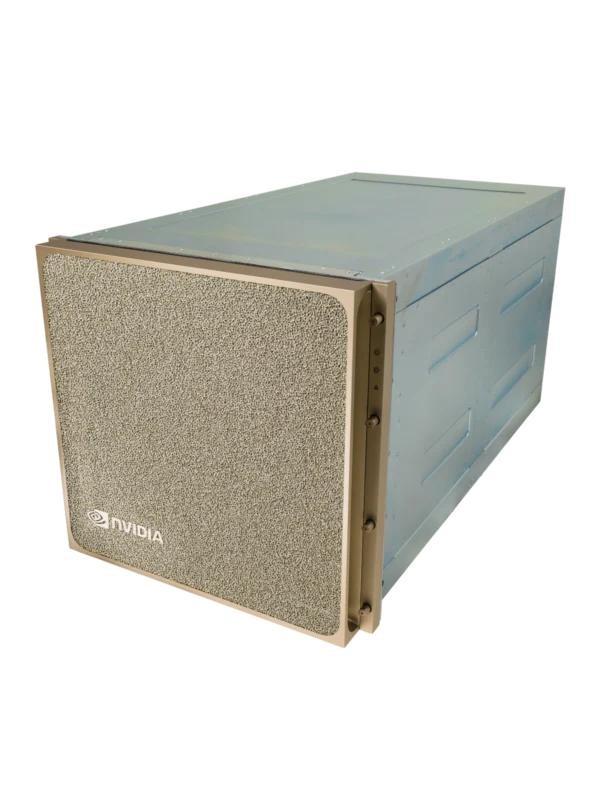

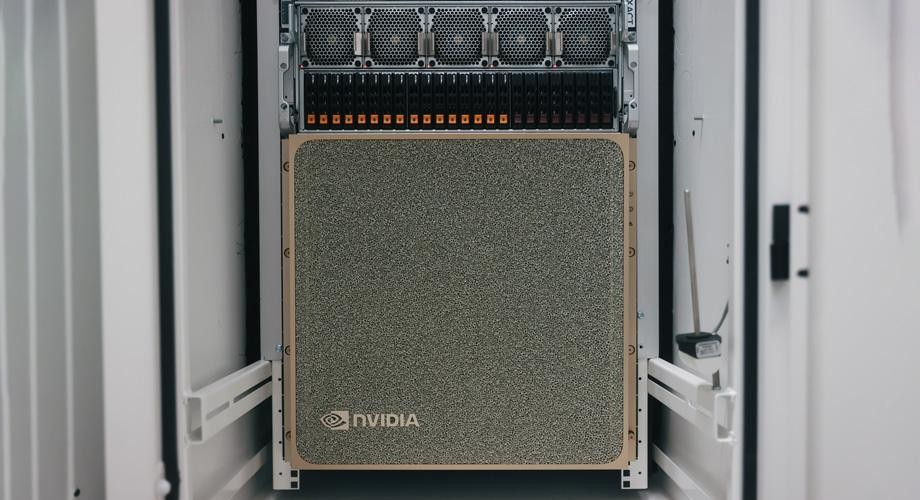

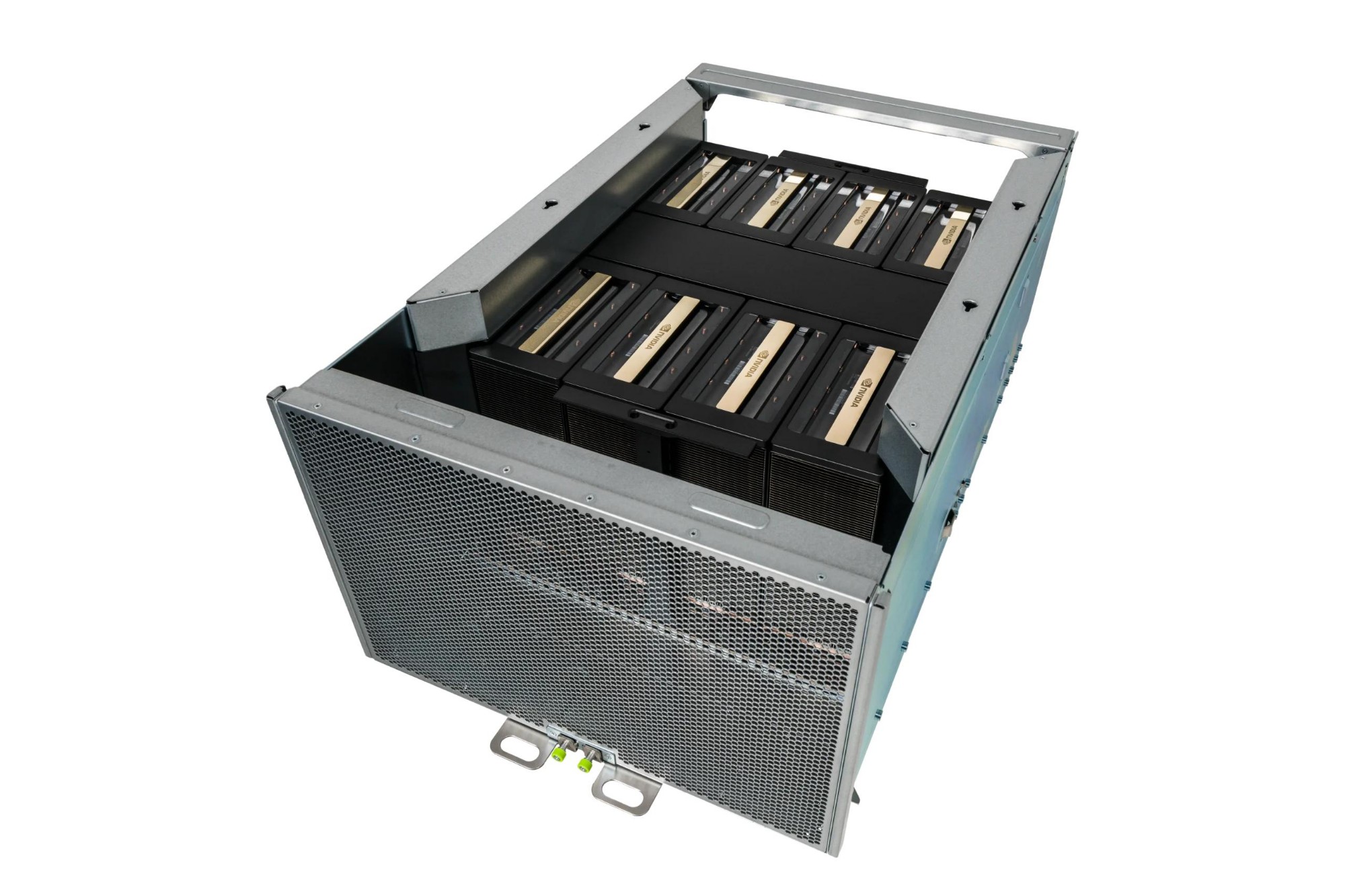

NVIDIA DGX B200
Specification NVIDIA DGX B200
Product Name NVIDIA DGX B200
System Type AI / HPC Data Center Server
GPU 8 × NVIDIA B200 Tensor Core GPU
GPU Architecture NVIDIA Blackwell
GPU Memory per GPU 180GB HBM3e
Total GPU Memory 1.44TB HBM3e
Memory Bandwidth per GPU 8 TB/s
Total GPU Memory Bandwidth 64 TB/s
GPU Form Factor SXM6
Tensor Cores 5th Generation
NVLink 5th Generation NVLink
NVLink Bandwidth 1.8 TB/s per GPU
NVSwitch 4 × NVIDIA NVSwitch
CPU 2 × Intel Xeon Platinum 8570
CPU Cores 112 cores total
System Memory 2TB DDR5 ECC
Network 8 × NVIDIA ConnectX-7
Network Speed 400Gb/s per network adapter
Storage 30.72TB NVMe SSD
Form Factor 8U Rackmount
Maximum System Power ~14.3kW
Cooling Air Cooling
Operating System NVIDIA DGX OS
Target Market Data Center / AI / HPC
Main Applications LLM Training, LLM Inference, Generative AI, HPC
