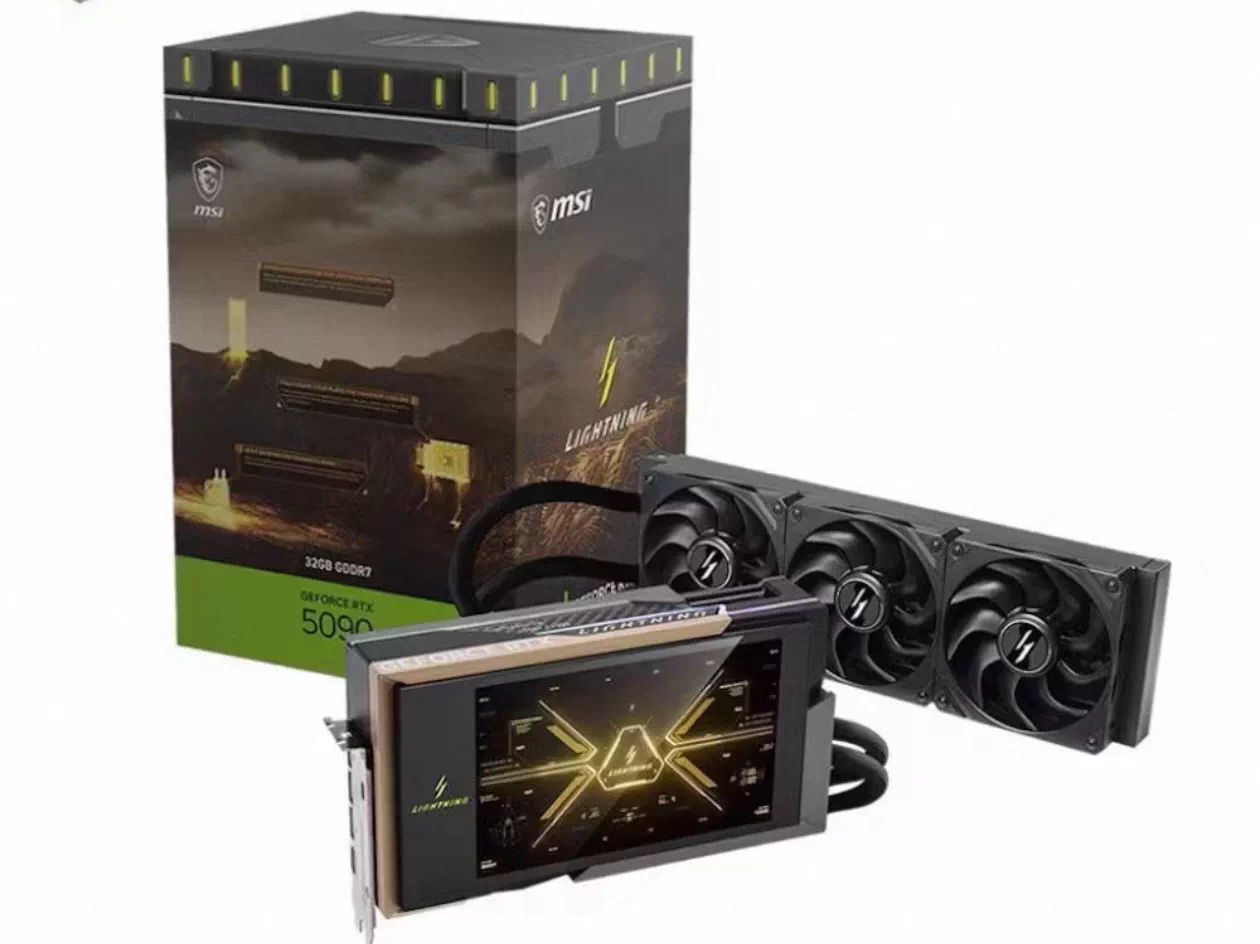

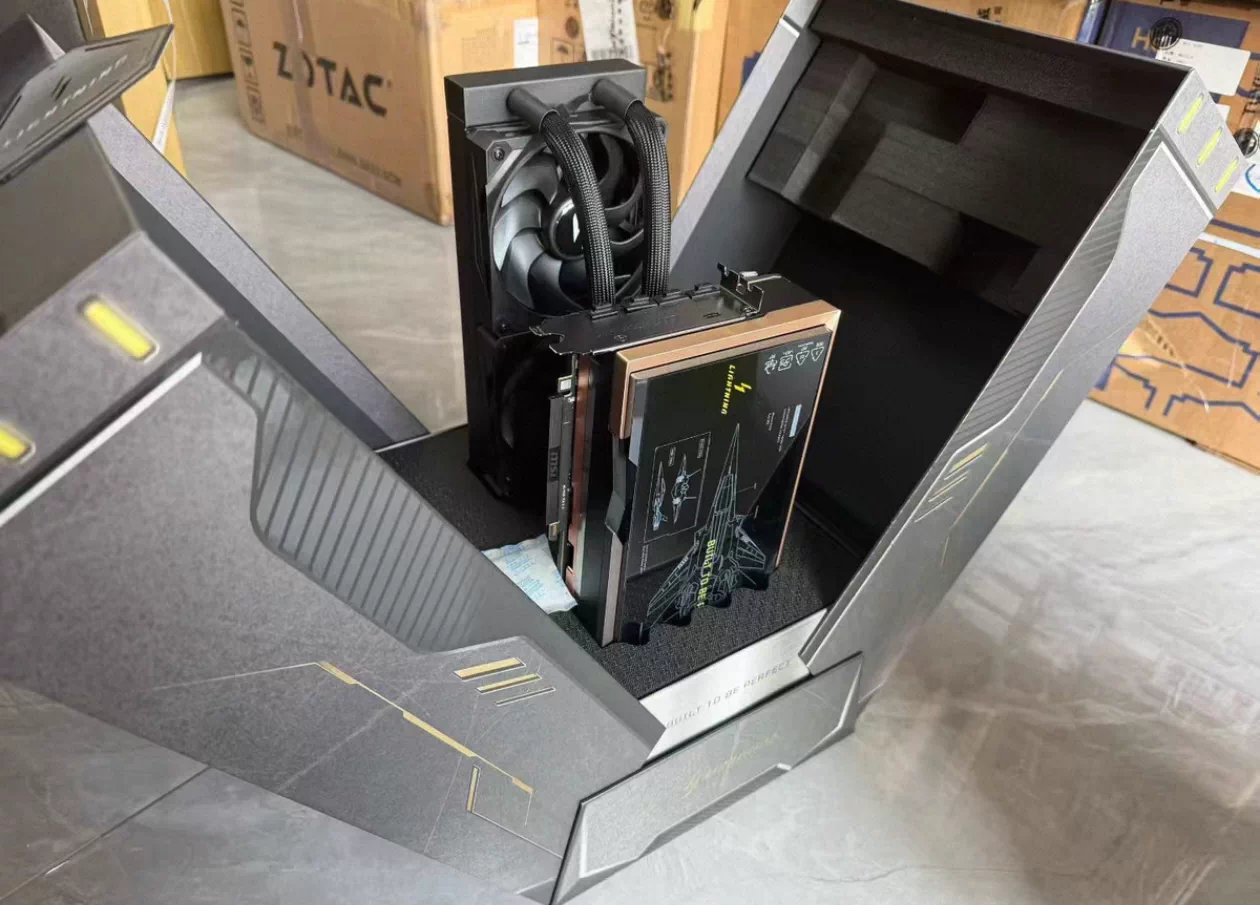

MSI RTX 5090 32G LIGHTNINGZ
Specification Official Specification
Brand MSI
Model Name G5090-32LZ
Graphics Processing Unit NVIDIA GeForce RTX 5090
Architecture NVIDIA Blackwell
CUDA Cores 21,760
Video Memory 32GB GDDR7
Memory Speed 28 Gbps
Memory Interface 512-bit
Memory Bandwidth 1,792 GB/s
Interface PCI Express 5.0 ×16
Boost Clock 2730 MHz
Extreme Performance 2775 MHz via MSI Center
DisplayPort 3 × DisplayPort 2.1b
HDMI 1 × HDMI 2.1b
USB Type-C 1 × USB Type-C — Lightning display only
Maximum Displays 4
Maximum Resolution 7680 × 4320
Power Connectors 2 × 16-pin
Recommended PSU 1500W+
Power Consumption 800W OC / 1000W Extreme
Card Dimensions 260 × 151 × 61 mm
Radiator Dimensions 394 × 120 × 56 mm
DirectX DirectX 12 Ultimate
OpenGL OpenGL 4.6
HDCP 2.3
G-SYNC Yes
